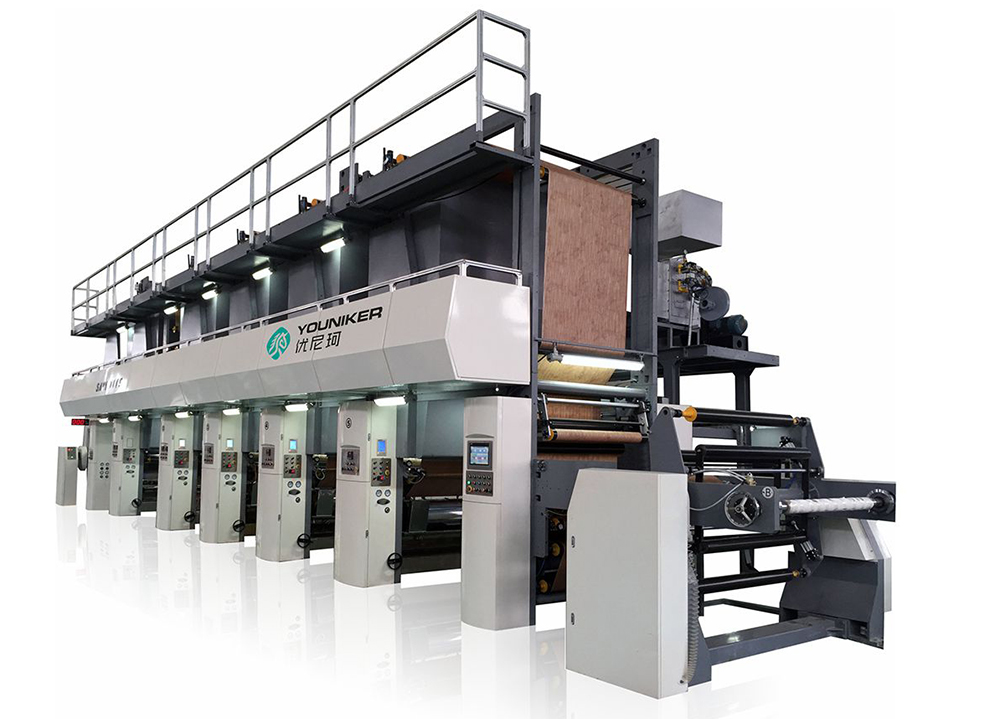

Gravure Printing Press, SAY-C
Gravure Printing Press, SAY-C
Request a Quote

Gravure Printing Press, SAY-C

Features
  • Drive system: electronic line shaft, gearbox directly connected with motor;
  • Tension control: Siemens or Schneider automatic tension control system;
  • Color registration: automatic longitudinal and lateral register control;
  • Impression system: linear guide rail for positioning;
  • Doctor blade: linear rail guided movement;
  • Inking method: ink transfer roller;
  • Splicing method: double-station automatic splicing;
  • Protection measures: emergency stop button, protective devices;
  • Operation control: centralized control via tough screen;
  • Heating method: thermal oil, steam, electricity and gas are optional;
Specifications
Applicable substrate 60g/m2-150g/m2 paper
Web width 1300mm, 1600mm, 1900mm, 2200mm
Machine speed 320m/min
Printing speed 300m/min
Printing cylinder diameter Ø200-450mm
Color registration accuracy ±0.1 mm
Unwind/rewind diameter Ø1200mm
Paper core size 3”
Job changeover 300m/min
Gravure printing press for decorative paper
Gravure Printing Machine

  • Woodgrain paper

    Woodgrain paper is a kind of decorative paper weighing 65-80g, featuring wooden texture, stone grain and monochrome. Woodgrain paper is adhesive when heated up because it has been dipped in the making process, meaning that the wood grain paper can stick to the target surface after heated up. Woodgrain paper also possesses good durability; therefore it can be applied to not just smooth surfaces of normal furniture, but also to the floor and walls.

    01

  • Poly paper

    Poly paper is a kind of decorative paper weighing around 30g, featuring wooden texture, stone texture and monochrome. Customers need to apply glue to poly paper because it hasn’t been dipped in the process. Poly paper is of low cost, applicable to common furniture.

    02

  • PVC

    PVC is 70-80μm thick, featuring wood grain, stone grain and monochrome. PVC gains its durability by pasting wear-resistant coating. PVC also has flexibility, can be directly applicable to surfaces. Additionally, customers can use plastic to apply to uneven surfaces.

    03
