Dry Mortar Bag Production Line

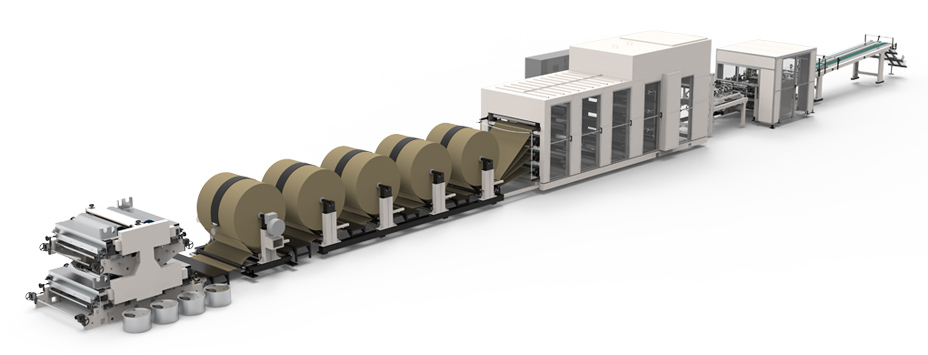

Valve sack production line for kraft paper valve sack production
Food Grade Paper Valve Bag Production Line
Valve Sack Tuber
Food Grade Paper Valve Bag Production Line
Valve Sack Bottomer

This valve sack production line is designed and fabricated especially for making dry mortar bags, it is comprised of Youniker ZT1962S valve sack tuber and HD8916 valve sack bottomer. Apart from dry mortar, the valve sack production line is also suitable for making valve bags used to fill pigment, starch and other powdered substance, due to the good sealing effect of the valve bag.

Specifications
Valve Sack Tuber
Size 31×4×3.5 m
Weight 32 t
Types of cutting flush-cut + stepped-end cut
Tube length (stepped-end cut) 500-1100mm
Tube length (flush-cut) 500-1100 mm
A-shape tube width 370-620 mm
M-shape tube bottom width ≤80 mm
Cuttable 2-4 layers of paper+1layer of film
Maximum productivity 175 sacks/min
Maximum roll paper diameter 1300 mm
Valve Sack Bottomer
Weight 34.5 t
Size (High Configuration) 27.2×5.6×2.1m
Bag length 370-770mm
Bag width 350-550mm
Bottom width 90-150mm
Bag center distance 280-620mm
Productivity 80-100 sacks/min
Features
  • Capable of producing valve sacks for small particulate substances such as cement, pigment and chemicals.
  • Equipped with interior and exterior reinforcing strips, adaptable to high-pressure fast filling.
  • Provided with valve making units for both sleeve valve and flap valve, this valve sack production line is applicable to make complicated valves, such as double film laminated valve bags, hot-melt glue sealing paper valve bags, ultrasonic sealing paper valve bags and others with brilliant sealing.
Samples of valve sack
  • Kraft valve bagKraft valve bag
  • Film laminated paper valve bagFilm laminated paper valve bag
  • Ultrasonic sealing paper valve bagUltrasonic sealing paper valve bag
  • Hot-melt glue sealing paper valve bagHot-melt glue sealing paper valve bag
Loaded valve sacks in plant
  • Loaded valve sacks in plant
  • Loaded valve sacks in plant
  • Loaded valve sacks in plant
  • Loaded valve sacks in plant
  • Loaded valve sacks in plant

Note: This valve sack production line features better configuration version of HD8916 valve sack bottomer, typically suitable for producing valve sacks containing mortar, pigment, starch and other powdered goods. If you need to produce valve sacks suitable for cement, activate carbon and other particulate substance, please visit the link for cement bag production line; If block bottom valve sacks for food, seeds and animal food is what you need, please visit the link for food grade paper valve bag production line.
