Cement Bag Production Line

Valve sack production line for kraft paper valve sack production
Food Grade Paper Valve Bag Production Line

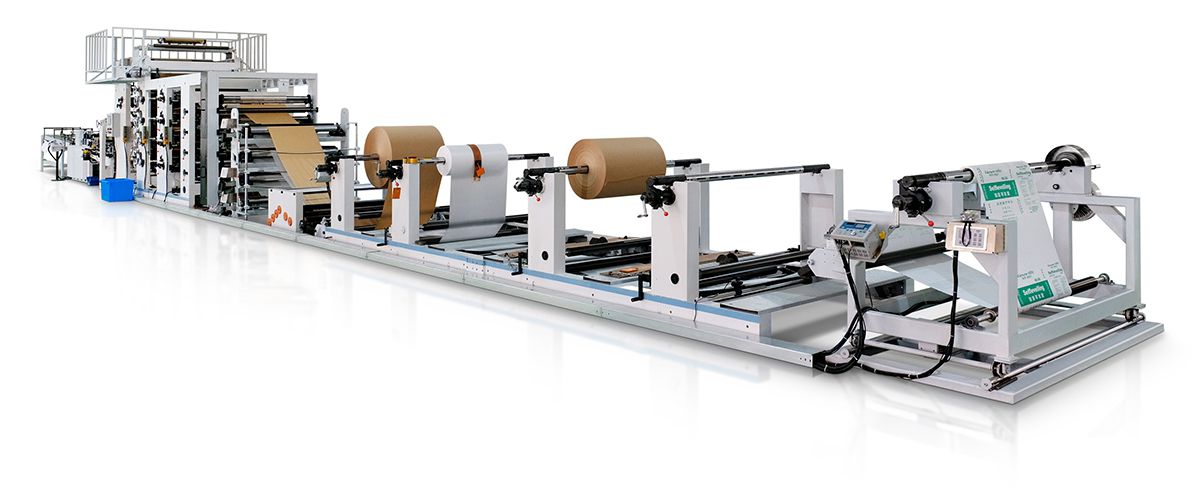

Valve Sack Tuber
Food Grade Paper Valve Bag Production Line

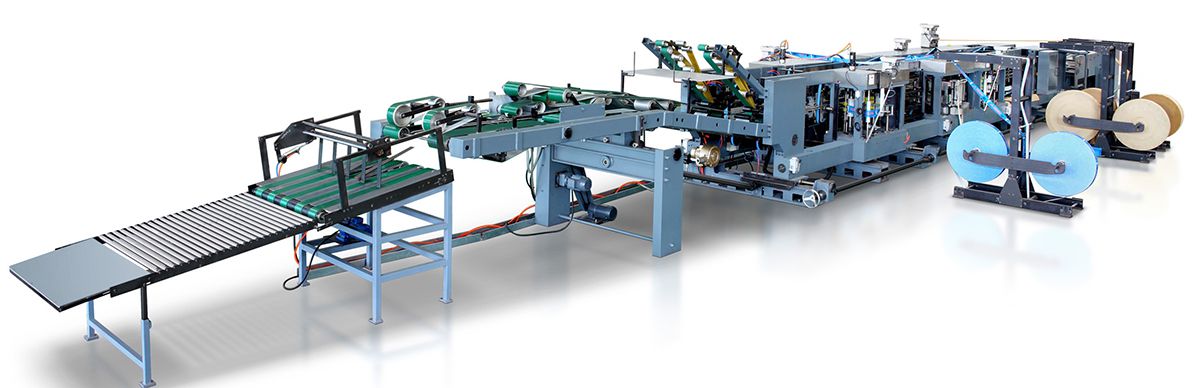

Valve Sack Bottomer

This cement bag production line is a valve sack production line comprised of our ZT1962S valve sack tuber and HD8916 valve sack bottomer, it is suited to make paper valve bags for preserving cement, activate carbon, farm produce and other particulate substance.

Specifications
Valve Sack Tuber
Size 31×4×3.5 m
Weight 32 t
Types of cutting flush-cut + stepped-end cut
Tube length (stepped-end cut) 500-1100mm
Tube length (flush-cut) 500-1100 mm
A-shape tube width 370-620 mm
M-shape tube bottom width ≤80 mm
Cuttable 2-4 layers of paper+1layer of film
Maximum productivity 175 sacks/min
Maximum roll paper diameter 1300 mm
Valve Sack Bottomer
Weight 34.5 t
Size (High Configuration) 27.2×5.6×2.1m
Bag length 370-770mm
Bag width 350-550mm
Bottom width 90-150mm
Bag center distance 280-620mm
Productivity 80-100 sacks/min
Features
  • Capable of producing cement valve sacks at a high speed with low costs
  • S-shape compactors of small and large size are available, making valve sacks easy to collect

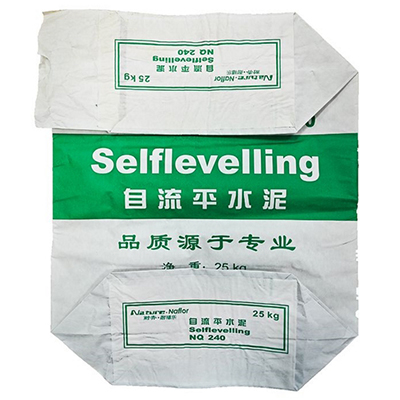

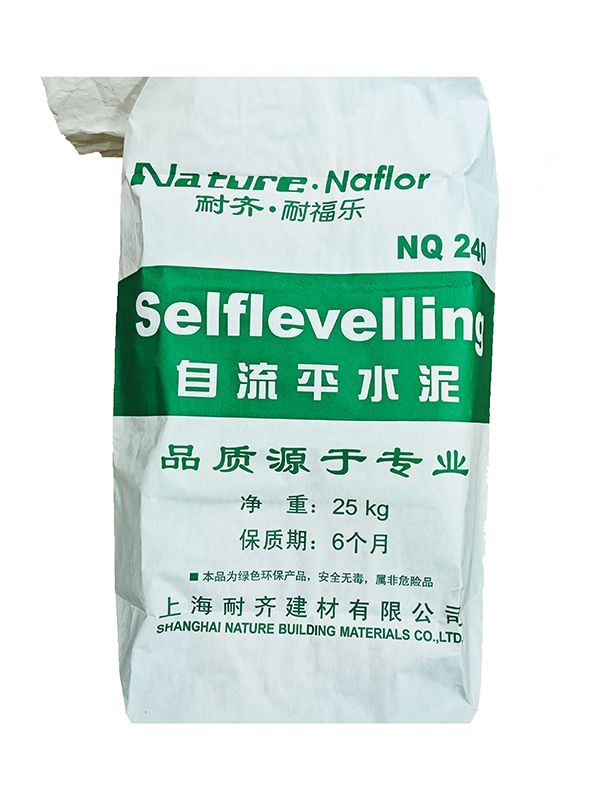

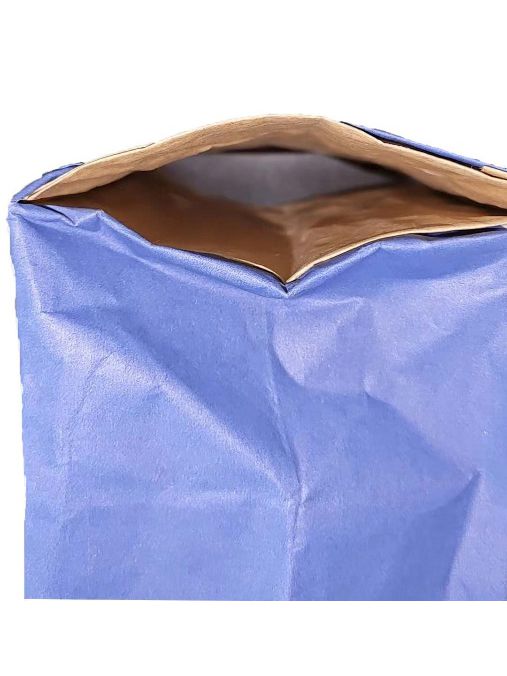

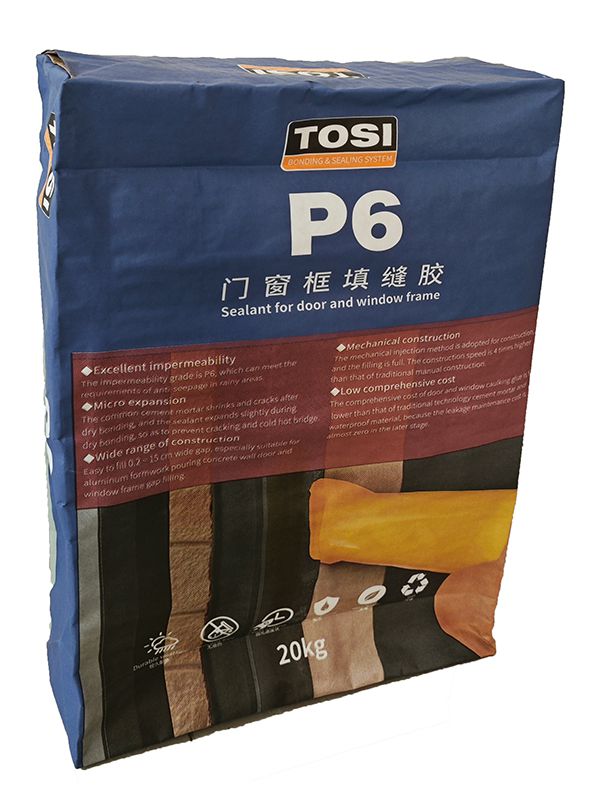

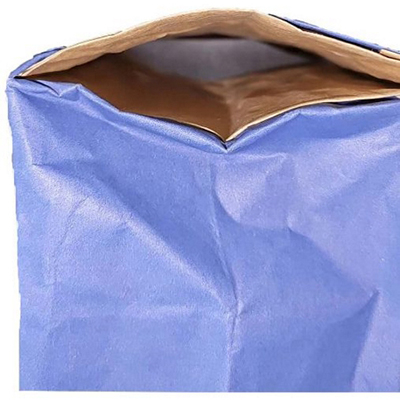

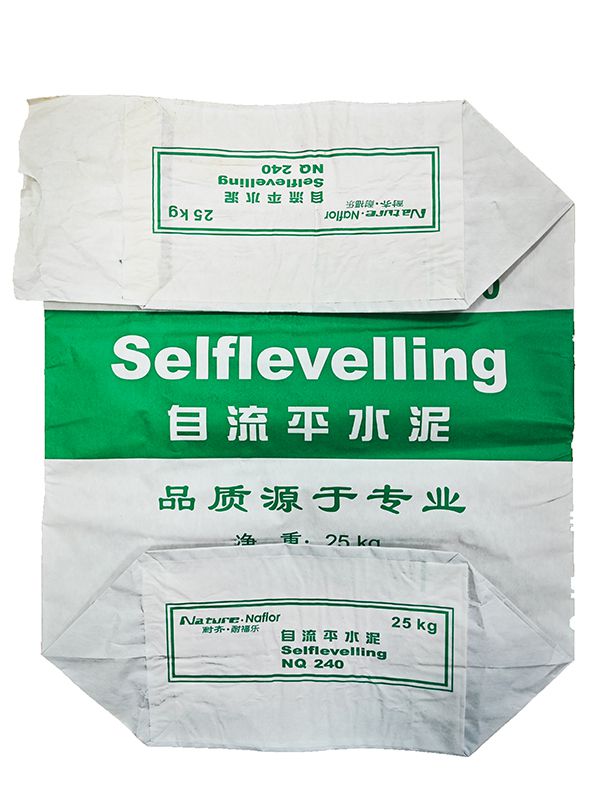

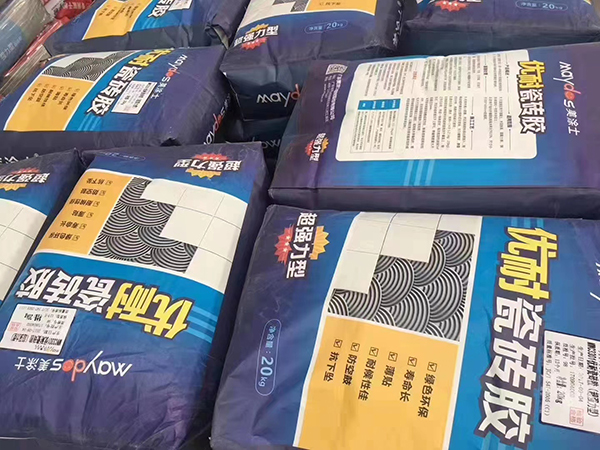

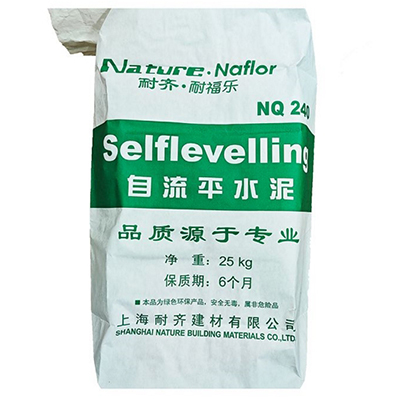

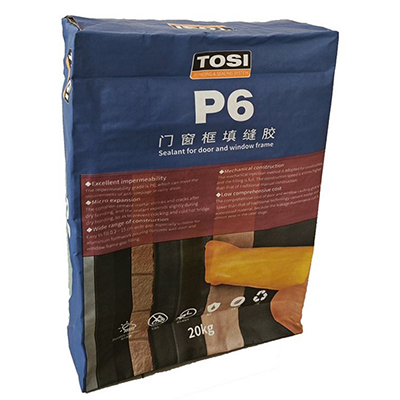

Samples of valve sack
  • Kraft valve sackKraft valve sack
  • Kraft valve sackKraft valve sack
  • Film laminated valve sackFilm laminated valve sack
  • Film laminated valve sackFilm laminated valve sack

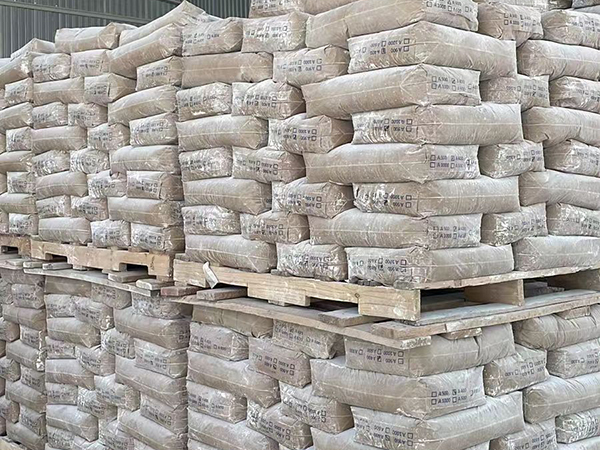

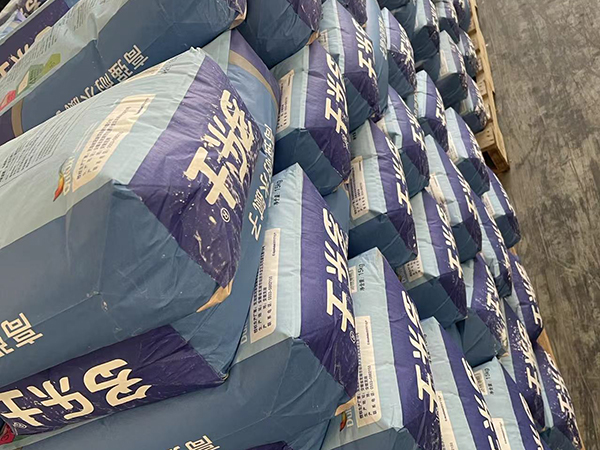

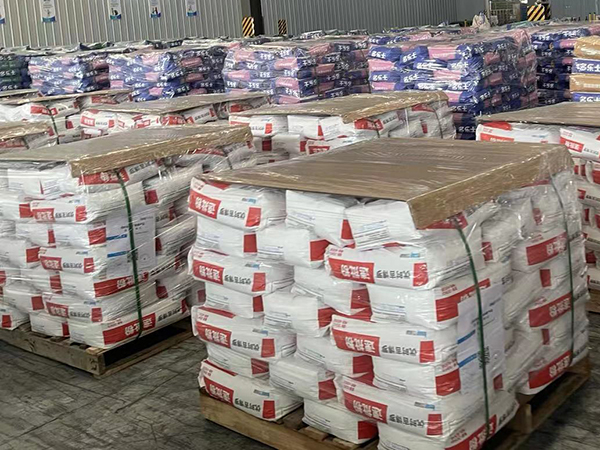

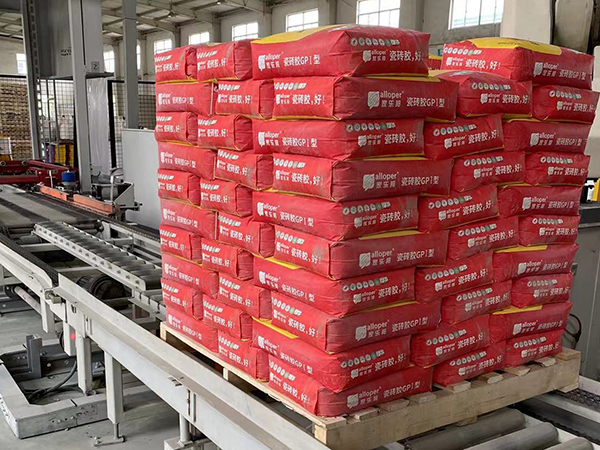

Loaded valve sacks in plant
  • Loaded valve sacks in plant
  • Loaded valve sacks in plant
  • Loaded valve sacks in plant
  • Loaded valve sacks in plant
  • Loaded valve sacks in plant

Note: This valve sack production line is equipped with lower-cost version of HD8916 valve sack bottomer, primarily suitable for making valve sacks used for filling cement and other particulate substance. If you need to produce valve sacks used to hold smaller particulate substance, such as dry mortar, pigment and chemicals, please visit our dry mortar bag production line; if you want block bottom valve sacks for food, seeds and animal food, please visit the food grade paper valve bag production line.
